Feature:

1. Multiple unlocking methods: Including fingerprint, anti-privacy virtual password, traditional mechanical spare key (including 2). One-touch fingerprint access, reads your fingerprint and unlocks your door. The fingerprint capacity is large, which can store 50 fingerprints. Convenient to store fingerprints of family members or close friends.

2. Smart Tuya APP: Easily realize the intelligent life of home interconnection. Real-time management, door opening record, checking door lock status (networking status, unlocking record, abnormal alarm, remote unlocking, power reminder) (optional).

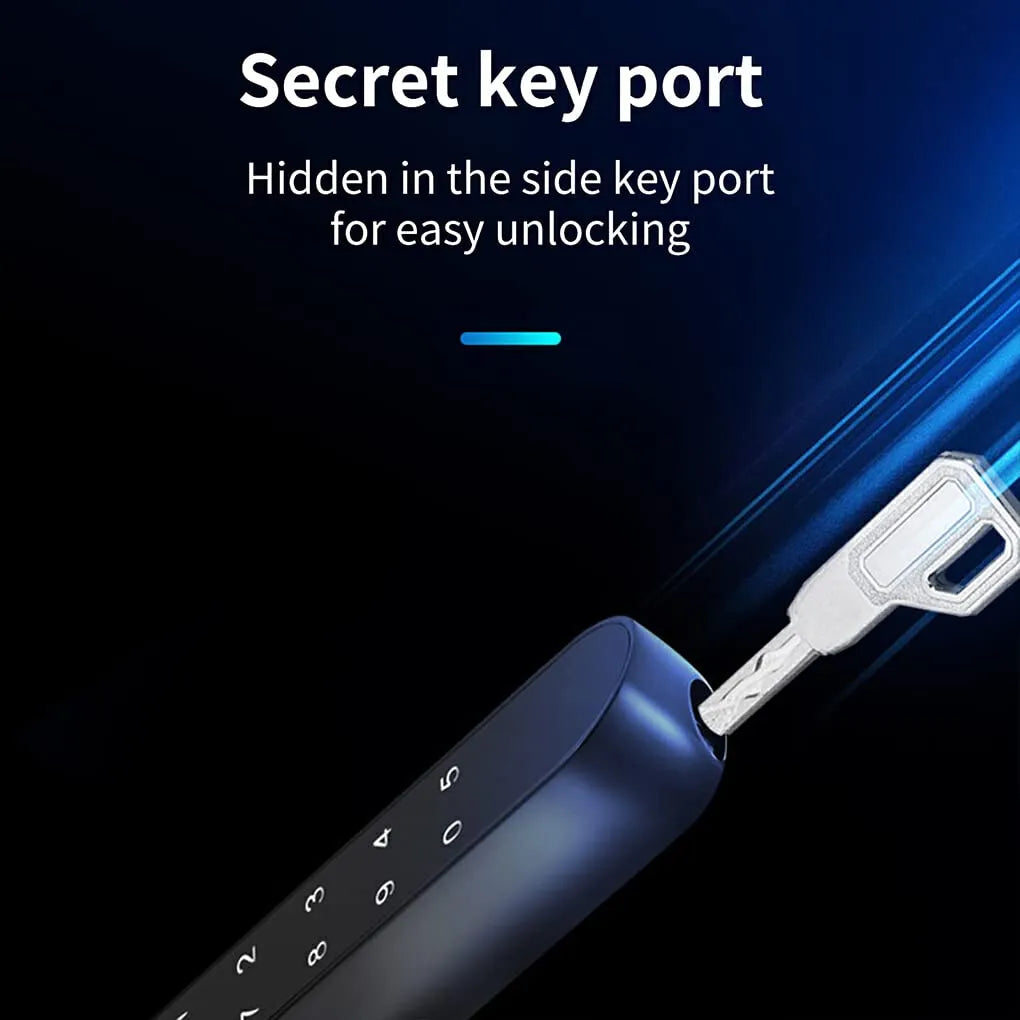

3. USB charging port emergency and spare key: When the battery is seriously low or the battery is completely exhausted, you can use the spare key to open the door. With its own USB charging port, it can also temporarily supply power when connected to a mobile power bank.

4. Adjustable volume: You can adjust the sound. 0 is silent, 1 is low volume, 2 is medium volume, and 3 is high volume. Silent mode won't bother you when you get home late at night. The door lock adopts a free handle design, which can prevent malicious violence from destroying the lock body and damage to the internal parts. The handle is interchangeable left and right. When entering the room, touch the password button to turn on the screen, which is practical and convenient. No wires and no professional required. It works on most doors that use a lever door lock and works with left and right handles.

5. Anti-peeping design: The fake password anti-peeping design can enter garbled characters before and after the correct password. It will effectively protect the personal safety of you and your family. This door lock will provide you top-notch security, utilizing semiconductor and biometric technology to avoid identical fingerprints. Ergonomic design allows you to quickly unlock within 0.3 seconds, just put your fingerprint on the door. It will automatically lock for you. Indoor installation can be the second line of defense for the home. Installed in offices and factories, it is easier to control employee access and can replace traditional access control equipment.

Specification:

Certification: CE

Origin: Mainland China

Smart home platform: Tuya

Model Number: Smart fingerprint lock

Handle Direction: Direction Reversible

Ways To Unlock: Fingerprint,Password,Mechanical Keys

Doorknob Funcition: Biometric,Key & Keypad

Finish Type: Polished

Suitable Door Type: Glass Door,Wooden Door

Protection Level: No Waterproof

Power Supply: Dry Battery

Material: Zinc alloy

Color: Black, silver (optional)

Style: (optional)


With Tuya APP: TY196 - fingerprint - password - key - normal open function - electronic anti-lock - Tuya APP

Power supply: 6V

Low battery alarm: 4.3V

Current: <150mA

Motor current: <30Ua

Power supply: 4 X AAA batteries (not included) / USB emergency charging

Fingerprints: 50

Password: 100 groups (the first three are administrators)

Dimensions: 150x65x28mm/5.91x2.56x1.1in

Handle width: (about) 2.8cm/1.1in

Package size: 25.5x18x8cm/10.04x7.09x3.15in

Package weight: 0.88kg

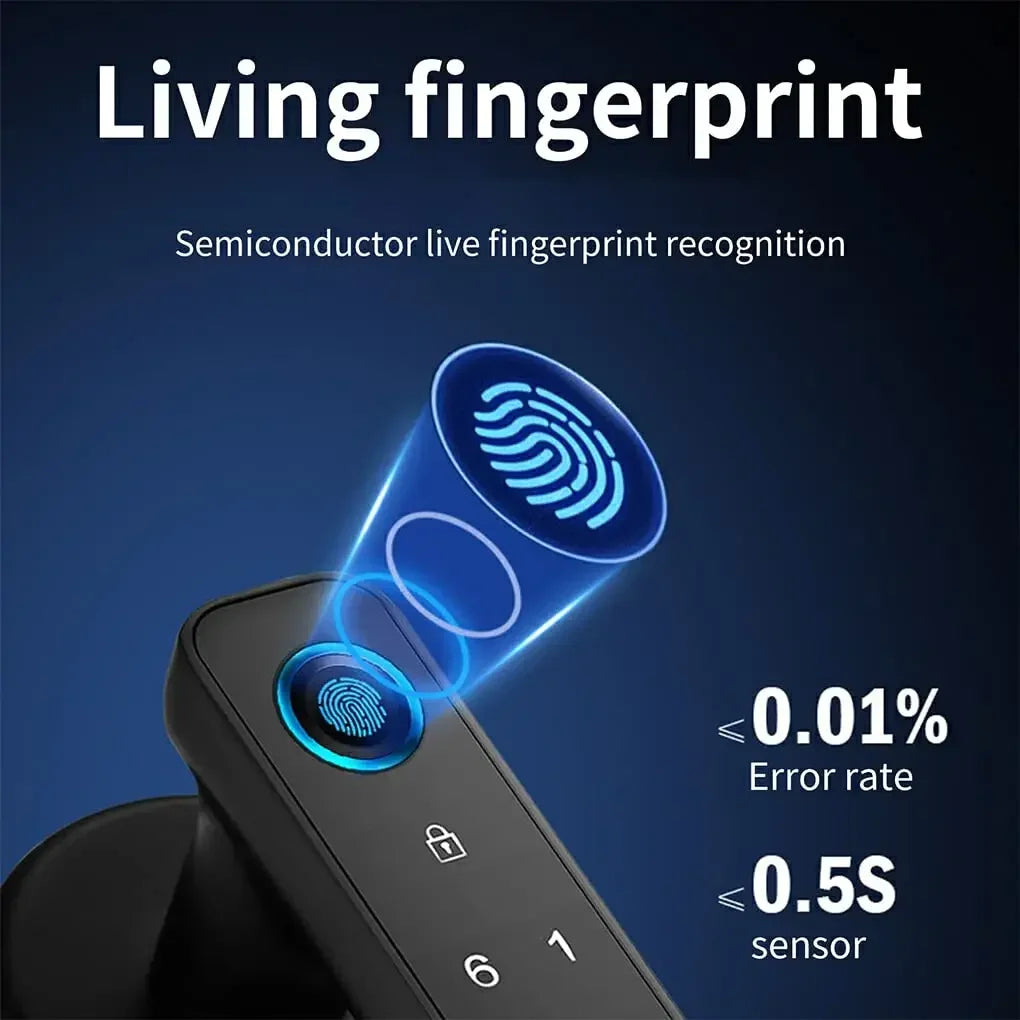

Fingerprint type: Semiconductor fingerprint head

Lock cylinder level: C-level lock cylinder

Emergency keys: 2

Operate:

1. Add fingerprints (the first 3 fingerprint users are administrators, and the fourth and above fingerprints are ordinary users)

A: Add a user for the first time: Press the setting button - the blue light flashes - press your finger 5 times until the green light is always on, indicating success, the entry is completed and the setting is automatically exited

B: The second addition: press the setting button - the blue light flashes - verify the administrator once - the verification is successful, the blue light is always on - enter a new fingerprint and press the finger 5 times until the green light is always on, indicating success

2. Delete fingerprint

Press and hold the setting button for 9 seconds - the blue light flashes, and the red light flashes after 9 seconds, release the hand, and the green light appears, indicating that the factory reset is successful

Note:

1.The product comes with English instructions, please follow the instructions to install and set up the smart door handle.

2.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

3.Please allow 1-2cm measuring deviation due to manual measurement.

Packages:

1 X Smart Door Lock Body

1 X Mounting Kit

2 X Keys


1 X Manual
